Input Material
Finished rice or grain product
Rice Packing Equipment
DCS-50FB1 Rice Bag Packing Machine
DCS-50FB1 is a mature 50kg-class rice bag packing machine for standard bulk finished-rice bags. It is suitable when a commercial rice mill needs a proven, stable configuration for conventional wholesale packaging.

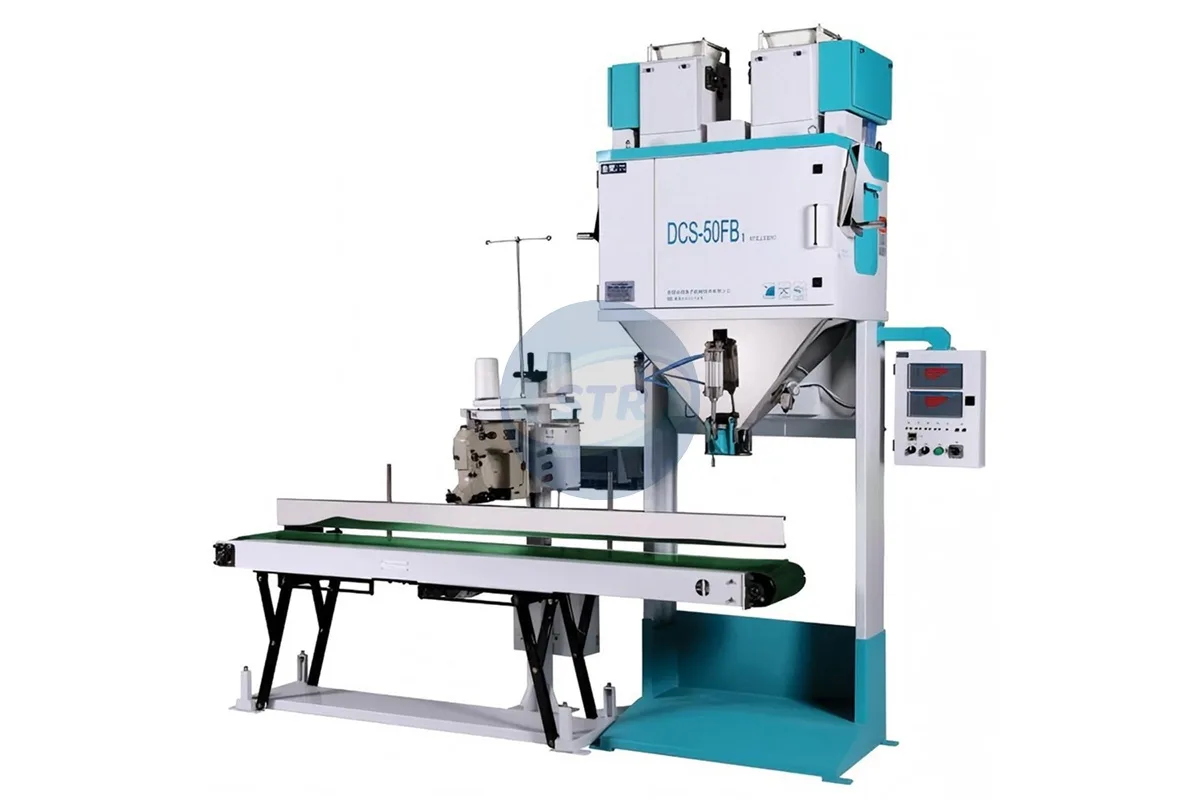

Product ViewDCS-50FB1 Packing Machine
View Process →Product Application
Application in Finished Rice Packing
This DCS-50FB1 rice bag packing machine is used for standard 50kg-class finished rice bagging. It is a mature configuration for customers who need stable bulk weighing and filling in conventional commercial packaging lines.
Core FunctionAutomatic weighing, filling and packing of finished rice into bags or retail packages.
Buyer ValueProvides stable bulk bag weighing and filling for commercial rice mills using a proven 50kg-class configuration.
Packing StageUsed at the final packing stage after grading, color sorting and finished-rice buffering, preparing rice for storage, transport and sale.
Process Result & Line Integration
How DCS-50FB1 Rice Bag Packing Machine Fits in the Rice Milling Line
See how finished rice enters the weighing, filling or sealing section and becomes ready for storage or distribution.
Processing Action
Automatic weighing, filling, sealing or flow measurement
Output / Next Step
Bagged product or measured material flow
Key Features
For Stable 50kg-Class Rice Bag Packing
Suitable for standard commercial rice bagging where stable operation and regular output are required.
Commercial Bagging
Used for 50kg-class finished-rice bag weighing and filling.
Reliable Operation
A practical option for regular commercial rice mill packing sections.
Easy Line Matching
Matched with finished-rice bins, conveyors and sewing/sealing equipment.

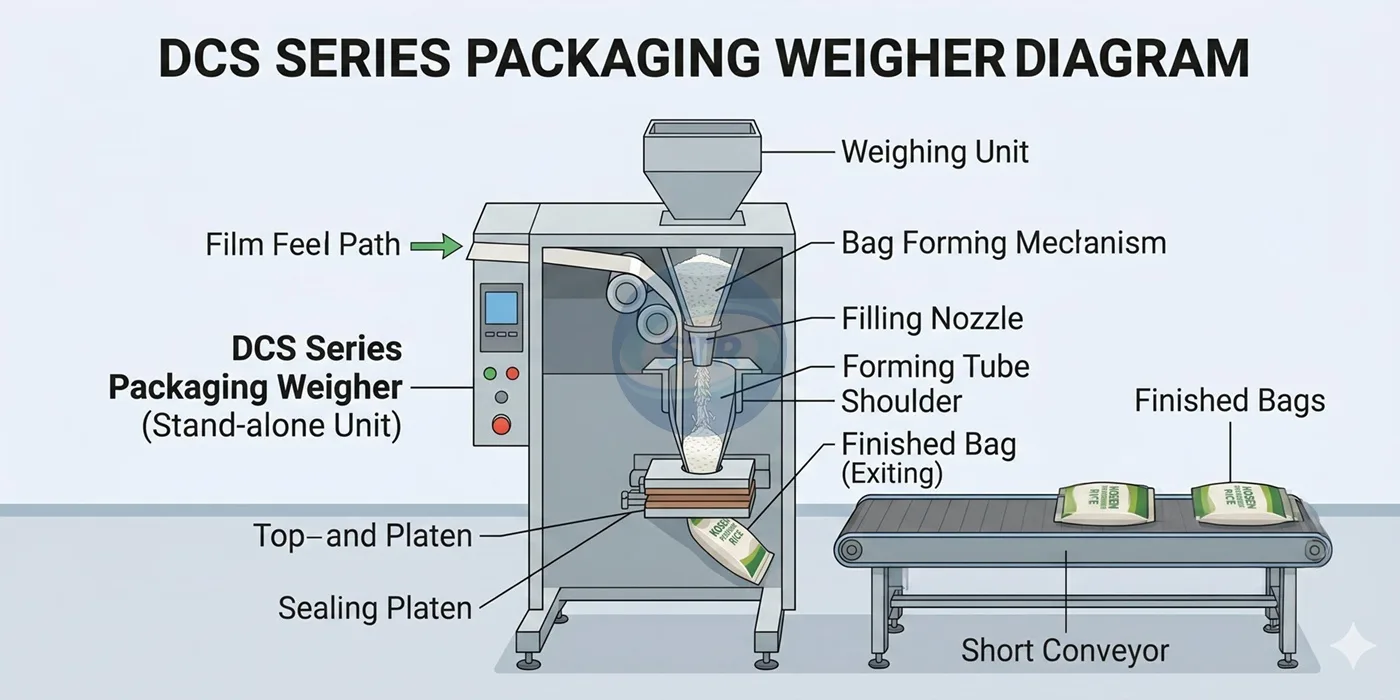

Working Principle
How It Works in the Process
Use weighing, feeding, filling and sealing/sewing systems to complete quantitative packing.
Input
Finished rice enters the weighing, filling, sealing or flow-measurement section.
Weighing / Filling
The equipment measures or fills rice according to the required bag or process format.
Package Handling
Filled bags are sealed, discharged or transferred to the next handling step.
Output
Rice is prepared for storage, distribution, retail packing or production monitoring.
Technical Specifications
50kg-Class Rice Bag Packing Specifications
Reference specifications are listed for the DCS-50FB1 50kg-class rice bag packing configuration. Final feeding, conveyor and bag-closing layout can be matched to the packing section.
| Item | DCS-50FB1 Reference Specification |
|---|---|
| Reference model | DCS-50FB1 / DCS-50FB2 class |
| Weighing range | 0.5–50 kg |
| Division value | 2 g |
| Weighing accuracy | 0.1% F.S |
| Weighing speed | <1300 bags/hour |
| Working environment | Relative humidity ≤90% |
| Voltage | 4N-AC 380V 50Hz |
| Power consumption | 1.1 kW, 0.4–0.5 MPa |
| Air consumption | 0.7 m³/h |
| Overall dimensions | 3077 × 893 × 2687 mm |
50kg-Class Packing Selection
When to Choose DCS-50FB1 Rice Bag Packing Machine
Choose DCS-50FB1 for stable 50kg-class commercial rice bags when the project needs reliable standard bag weighing and filling.
Standard Commercial BagsSuitable for conventional finished-rice bags used in wholesale distribution or commercial rice mills.
Stable Packing WorkA good choice when the priority is steady weighing, filling and bag closing for regular output.
Line MatchingConfirm finished-rice bin, conveyor, sewing or sealing equipment and compressed air before installation.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
Which bag sizes can be supported?
It depends on model and scale configuration.
Is vacuum packing available?
Yes, vacuum packing is handled by the DCS-ZK vacuum packing machine.
What information is needed?
Bag weight, bag type, packing speed and finished rice requirement.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send bag weight, bag type, packing speed and finished rice flow to select the right packing system.
