Input Material
Raw paddy with impurities
Cleaning & De-stoning Equipment
TQLM Rotary Cleaning Separator
TQLM Rotary Cleaning Separator: Smooth Impurity Removal. Using planar rotary motion, the TQLM separator effectively removes large and small impurities from raw paddy. It ensures stable milling performance and protects downstream processing equipment for commercial rice processors.

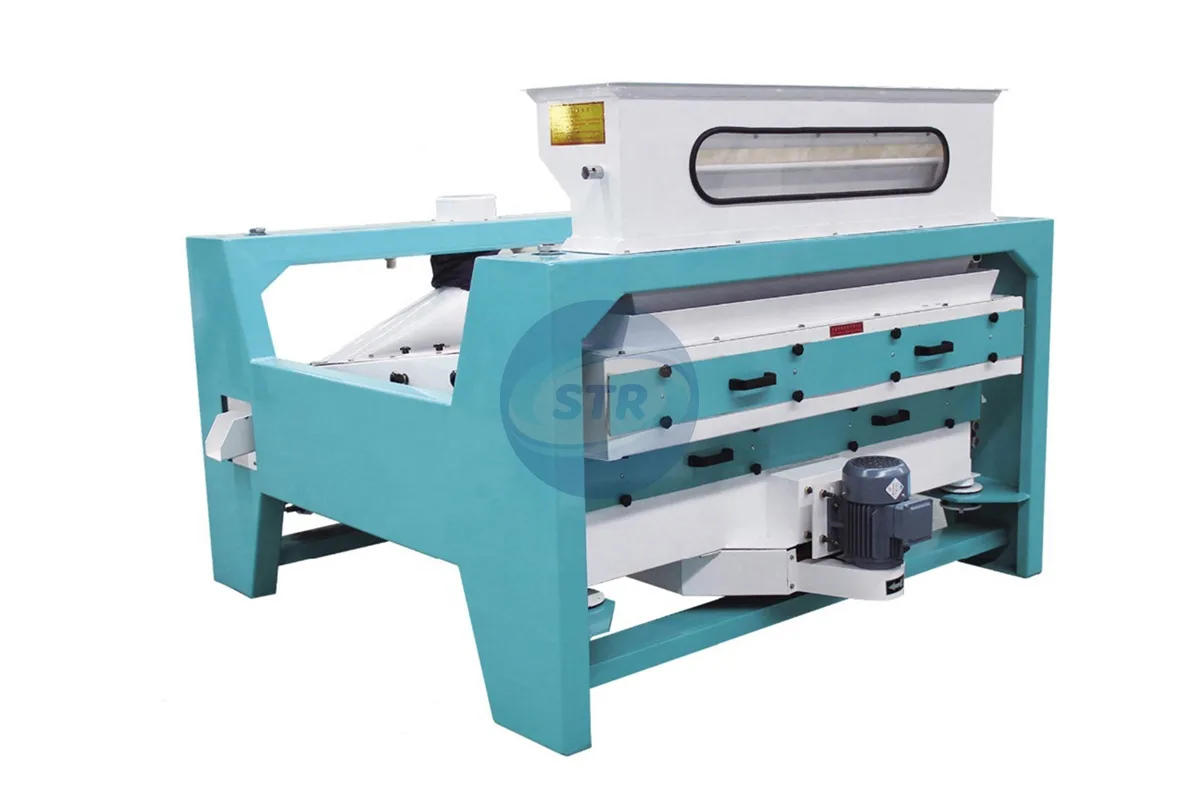

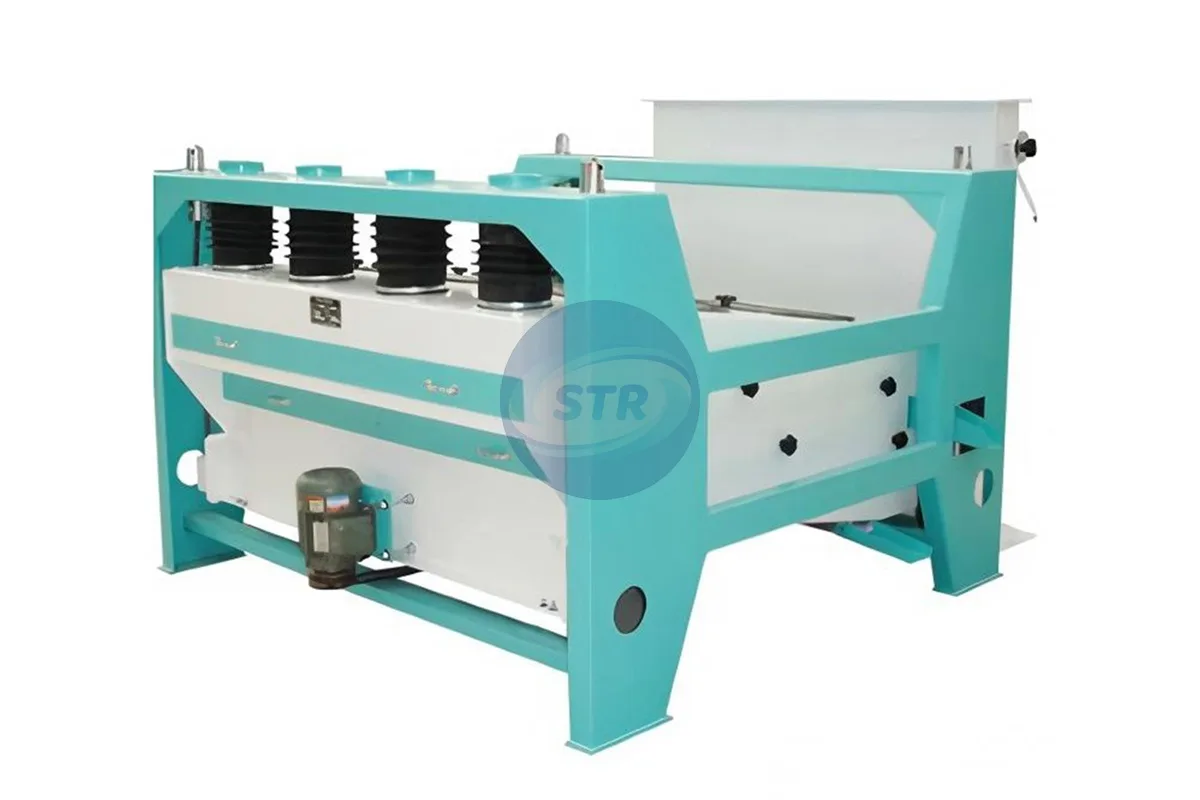

Product ViewTQLM Rotary Cleaning Separator
View Process →Product Application
Application in Paddy Cleaning and Destoning
This TQLM rotary cleaning separator is used to remove large, small and light impurities from paddy or grain by rotary sifting. It is a cleaning machine, not a stone remover, and is used when stable screening and dust-controlled cleaning are required.
Core FunctionScreening and aspiration cleaning to remove large, small and light impurities from paddy or grain.
Buyer ValueImproves material cleanliness before husking, reduces dust and impurity load, and helps downstream equipment run more steadily.
Line IntegrationPlaced in the front-end cleaning section before husking, where it removes impurities, stones or dust so downstream huskers, separators and whiteners can work more steadily.
Process Result & Line Integration
How TQLM Rotary Cleaning Separator Fits in the Rice Milling Line
See the material before cleaning, the impurity-removal action and the cleaner paddy sent to the next process.
Processing Action
Screening, aspiration or preliminary cleaning
Output / Next Step
Cleaned paddy for de-stoning or husking
Key Features
Cleaner Input Before Husking and Milling
Removes impurities before paddy reaches the husker, protecting downstream equipment and improving process stability.
Targeted Impurity Removal
Selects the machine according to large impurities, light impurities, fine impurities, stones or mixed impurity conditions.
Protects Downstream Machines
Cleaner paddy helps reduce wear and blockage in huskers, whiteners, separators and elevators.
Matched to Capacity
Machine size, sieve area, air volume and cleaning stage are selected according to line capacity and raw grain condition.
Working Principle
How It Works in the Process
Materials go into the distribution device (2 )through inlet (1),then get on the first sifter (3) after being equally distributed by the distribution plate. The sifter does circular motion to fast spread the materials and sift for a long time to increase efficiency. Big impurities are on the first sifter (3) and discharged from side outlet (7).The impurities under (3) fall on the second sifter with grains and small impurities on the sifter which moves back and forth in the rear and quickly go into vertical air suction separator through outlet(6).Then the grains and small impurities are separated.micro impurities under the second sifter are discharged through the bottom outlet(8).
Input
Raw or pre-cleaned paddy enters the cleaning or de-stoning section.
Separation
Screens, air flow, vibration or gravity separate impurities from useful grain.
Impurity Discharge
Dust, straw, stones or other unwanted materials are removed through separate outlets.
Output
Cleaner paddy moves to husking, storage or the next cleaning stage.
Technical Specifications
Technical Specifications
TQLM rotary cleaning separator removes large, small and light impurities from paddy or rice through plane rotary screening motion.
| Model | Capacity | Power | Air Volume | Weight / Dimensions |
|---|---|---|---|---|
| TQLM80 | 6–20 t/h | 0.75 kW | 2400 m³/h | 600 kg; 2×1.2×1.5 m |
| TQLM100 | 8–25 t/h | 0.75 kW | 3000 m³/h | 700 kg; 2×1.4×1.5 m |
| TQLM125 | 10–32 t/h | 0.75 kW | 3600 m³/h | 800 kg; 2×1.7×1.5 m |
| TQLM150 | 12–35 t/h | 0.75 kW | 4200 m³/h | 950 kg; 2.3×1.9×1.5 m |
Cleaning & Destoning Selection
How to Choose Cleaning or Destoning Equipment
Start from impurity type: large impurities, light dust, small impurities, stones or a combined cleaning-and-destoning requirement.
Impurity TypeUse pre-cleaners for straw, rope and large impurities; use vibrating or rotary cleaners for fine cleaning and grading.
Stone ContentChoose a destoner or combined cleaner-destoner when stones and sand must be removed before husking.
Air & Dust ControlCheck suction air, dust collection and workshop layout so light impurities can be removed cleanly.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How do I choose between cleaner and destoner models?
Selection depends on impurity type, capacity and whether stone removal is required.
Where is this equipment installed?
Usually before husking to protect downstream machines.
Can the machine be matched with dust collection?
Yes, air suction or dust collection can be considered by model.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your raw material, impurity condition and required capacity to select the right cleaner or destoner.
