Input Material
Cleaned paddy containing stones
Cleaning & De-stoning Equipment
TQSF Double-Layer Suction Type Destoner
TQSF Double-Layer Suction Type Destoner: Protect Your Milling Line. Engineered to effectively remove stones and heavy impurities from raw paddy, this double-layer suction type destoner ensures a clean material flow, protecting your downstream huskers and whiteners from damage.

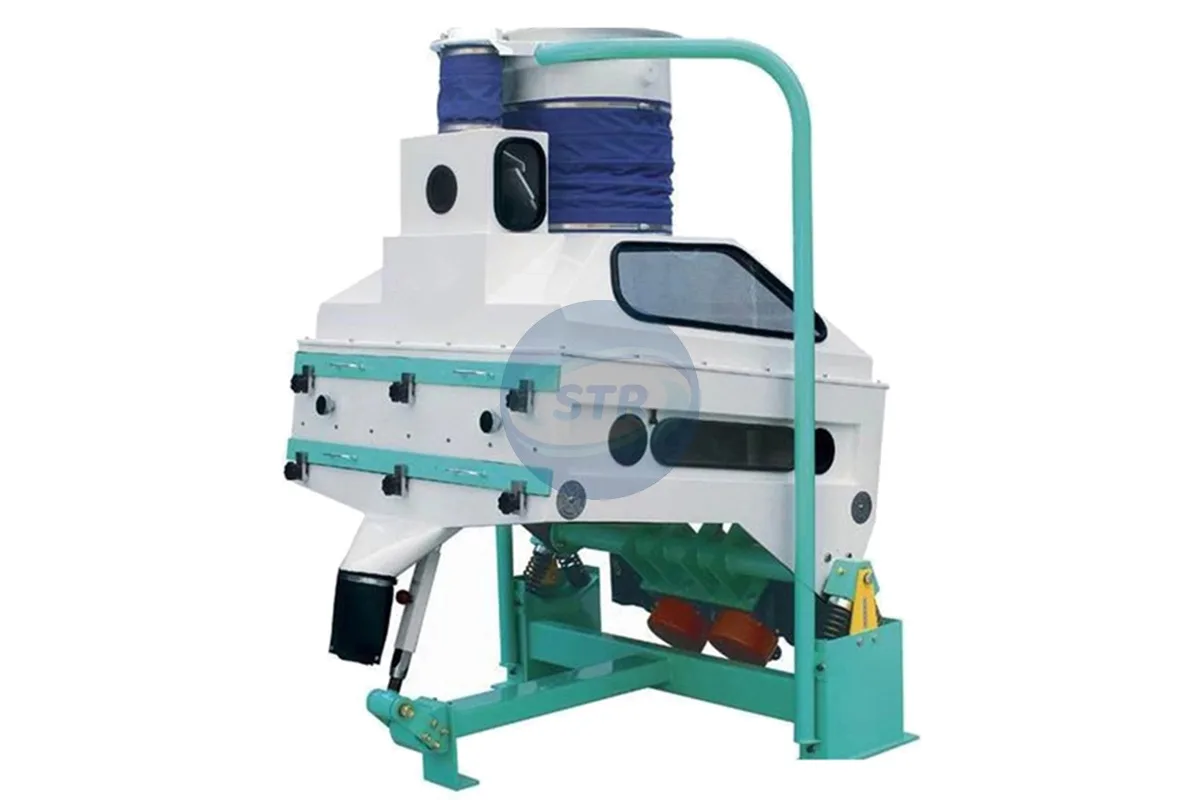

Product ViewTQSF Double-Layer Suction Type Destoner
View Process →Product Application
Application in Paddy Cleaning and Destoning
Essential Pre-Cleaning: Suitable for commercial rice processors facing mixed raw grain conditions. The TQSF double-layer suction type destoner separates stones of similar size to paddy using density differences. It is a critical section for maintaining stable milling performance.
Core FunctionGravity destoning for removing stones and heavy particles from cleaned paddy or grain.
Buyer ValueUses airflow and density differences to separate heavy impurities, protecting the husker, whitener and downstream machines from stone damage.
Line IntegrationPlaced in the front-end cleaning section before husking, where it removes impurities, stones or dust so downstream huskers, separators and whiteners can work more steadily.
Process Result & Line Integration
How TQSF Double-Layer Suction Type Destoner Fits in the Rice Milling Line
See the material before cleaning, the impurity-removal action and the cleaner paddy sent to the next process.
Processing Action
Gravity and air-flow separation
Output / Next Step
Stone-free paddy for safe husking
Key Features
Cleaner Input Before Husking and Milling
Removes impurities before paddy reaches the husker, protecting downstream equipment and improving process stability.
Targeted Impurity Removal
Selects the machine according to large impurities, light impurities, fine impurities, stones or mixed impurity conditions.
Protects Downstream Machines
Cleaner paddy helps reduce wear and blockage in huskers, whiteners, separators and elevators.
Matched to Capacity
Machine size, sieve area, air volume and cleaning stage are selected according to line capacity and raw grain condition.
Working Principle
How It Works in the Process
Use air flow, vibration and specific gravity difference to separate stones/heavy impurities from paddy or grain.
Input
Raw or pre-cleaned paddy enters the cleaning or de-stoning section.
Separation
Screens, air flow, vibration or gravity separate impurities from useful grain.
Impurity Discharge
Dust, straw, stones or other unwanted materials are removed through separate outlets.
Output
Cleaner paddy moves to husking, storage or the next cleaning stage.
Technical Specifications
Technical Specifications
TQSF double-layer suction type destoner is selected by screen width, capacity, air volume and material density difference.
| Model | Capacity | Power | Air Volume | Weight / Size |
|---|---|---|---|---|
| TQSF100×2 | 5000–8000 kg/h | 0.37×2 kW | 8000 m³/h | 400 kg; 1720×1316×1875 mm |
| TQSF120×2 | 8000–12000 kg/h | 0.45×2 kW | 10000 m³/h | 500 kg; 1720×1516×1875 mm |
| TQSF150×2 | 10000–15000 kg/h | 0.50×2 kW | 12000 m³/h | 600 kg; 1720×1816×1875 mm |
Double-Layer Destoner Selection
When to Choose TQSF Double-Layer Suction Type Destoner
Choose TQSF when higher destoning capacity and stronger gravity separation are needed for grain cleaning or rice milling projects.
Higher Destoning DemandSuitable for raw grain with more stones, sand or high-density impurities.
Double-Layer StructureThe double-layer design supports more stable separation and higher processing capacity.
Air System MatchingConfirm air volume, pressure, dust collection and installation space before final model selection.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
How do I choose between cleaner and destoner models?
Selection depends on impurity type, capacity and whether stone removal is required.
Where is this equipment installed?
Usually before husking to protect downstream machines.
Can the machine be matched with dust collection?
Yes, air suction or dust collection can be considered by model.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send us your raw material, impurity condition and required capacity to select the right cleaner or destoner.
