Input Material
Finished rice or grain product
Rice Packing Equipment
DCS-LD Electric Rice Flow Scale
DCS-LD Electric Rice Flow Scale: Continuous Yield Monitoring. Gain precise control over your production data. This electric flow scale accurately measures bulk grain flow in real-time, helping commercial rice processors track output and optimize yield.

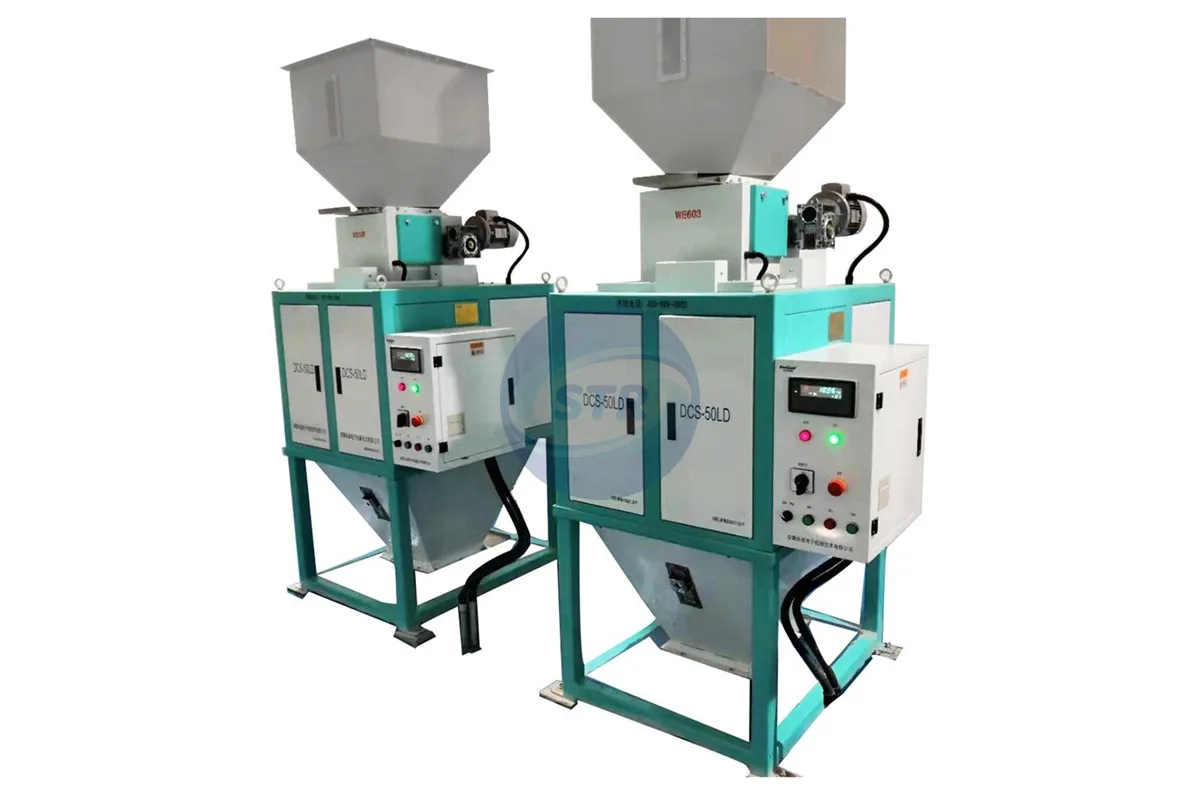

Product ViewDCS-LD Electric Flow Scale
View Process →Product Application
Application in Finished Rice Packing
This rice flow scale is used to measure and control continuous rice or grain flow in a processing line. It helps monitor production, weighing and material balance in commercial rice milling plants.
Core FunctionContinuous flow weighing and measurement for rice or grain passing through the process line.
Buyer ValueHelps monitor material flow, production volume and process balance without interrupting continuous operation.
Measurement PointUsed at selected discharge or transfer points to measure continuous material flow, such as before storage, packing or process balancing.
Process Result & Line Integration
How DCS-LD Electric Rice Flow Scale Fits in the Rice Milling Line
See how finished rice enters the weighing, filling or sealing section and becomes ready for storage or distribution.
Processing Action
Automatic weighing, filling, sealing or flow measurement
Output / Next Step
Bagged product or measured material flow
Key Features
For Finished Rice Weighing, Filling and Packing
Used at the final stage of the rice milling line to prepare finished rice for storage, distribution or retail sale.
Accurate Weighing
Measures rice by target bag weight to support consistent package quantity.
Packing Format Options
Can be matched with bag clamping, conveying, sewing, sealing or vacuum packing according to package type.
Line Integration
Installed after grading, color sorting or finished-rice bins and matched with conveyors or sealing equipment.

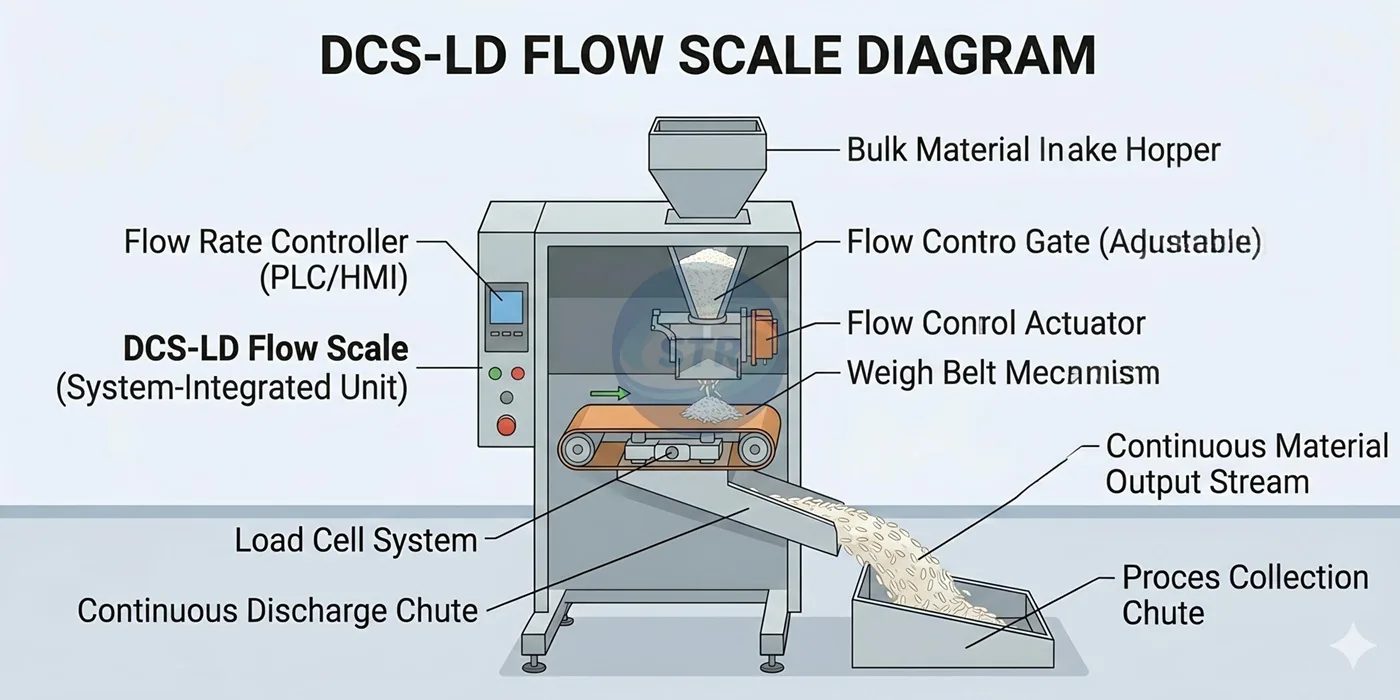

Working Principle
How It Works in the Process
Use weighing, feeding, filling and sealing/sewing systems to complete quantitative packing.
Input
Finished rice enters the weighing, filling, sealing or flow-measurement section.
Weighing / Filling
The equipment measures or fills rice according to the required bag or process format.
Package Handling
Filled bags are sealed, discharged or transferred to the next handling step.
Output
Rice is prepared for storage, distribution, retail packing or production monitoring.
Technical Specifications
Technical Specifications
DCS-LD electric flow scale is used for continuous weighing and flow measurement in grain processing, grain depots and port handling systems.
| Model | Output | Accuracy | Power / Consumption | Dimensions |
|---|---|---|---|---|
| DCS-50LD | ≤20 t/h paddy | 0.2% F.S | AC380V; 0.9 kW | 1035×1130×1770 mm |
| DCS-100LD | ≤40 t/h paddy | 0.2% F.S | AC380V; 0.9 kW | 1150×1270×1910 mm |
| DCS-200LD | ≤60 t/h paddy | 0.2% F.S | AC380V; 0.9 kW | 1320×1400×2860 mm |
| DCS-300LD | ≤80 t/h paddy | 0.2% F.S | AC380V; 0.9 kW | 1520×1570×2925 mm |
| DCS-400LD | ≤100 t/h paddy | 0.2% F.S | AC380V; 1.1 kW | 1670×1950×3320 mm |
Flow Measurement Selection
When to Choose a DCS-LD Electric Rice Flow Scale
Choose DCS-LD when the line needs continuous rice flow measurement rather than bag weighing or package filling.
Not a Bag PackerUse it for flow measurement and production monitoring, not for finished bag packing.
Installation PointPlace before storage, transfer, blending or packing where continuous flow needs to be recorded.
System ConnectionConfirm material flow, inlet/outlet height and control signal requirements with the plant layout.
Related Equipment
Matching Equipment and Related Products
FAQ
Common Questions
Which bag sizes can be supported?
It depends on model and scale configuration.
Is vacuum packing available?
Yes, vacuum packing is handled by the DCS-ZK vacuum packing machine.
What information is needed?
Bag weight, bag type, packing speed and finished rice requirement.
Project Inquiry
Discuss Your Rice Milling Project with Tongtai
Send bag weight, bag type, packing speed and finished rice flow to select the right packing system.
